WALLINGFORD ROAD

Residential Home – 293 Wallingford Road, Timmins, ON

• Material: Stone-Coated Shingles (Shake)

• Color: Charcoal

• Size: 3,000 sq. ft.

Project Overview

This home was in urgent need of a new roof, with visible damage and missing shingles compromising its integrity. Our team stepped in to provide a high-quality, long-lasting solution using durable stone-coated shingles.

To ensure optimal installation and performance, we:
✔ Installed strapping over the existing asphalt shingles to accommodate the new roofing system.
✔ Stepped back all eaves drip edges to allow for a seamless new eavestrough installation.
✔ Installed gable rake trim for a polished finish that integrates with the existing fascia.
✔ Supplied and installed a vented ridge cap to enhance attic and panel ventilation.

Why Stone-Coated Shingles?
The premium stone-coated material used for this roof significantly reduces the risk of snow sliding off, eliminating the need for snow stops. This provides added safety and peace of mind for the homeowner during harsh winter conditions.

Another happy homeowner, another job well done!

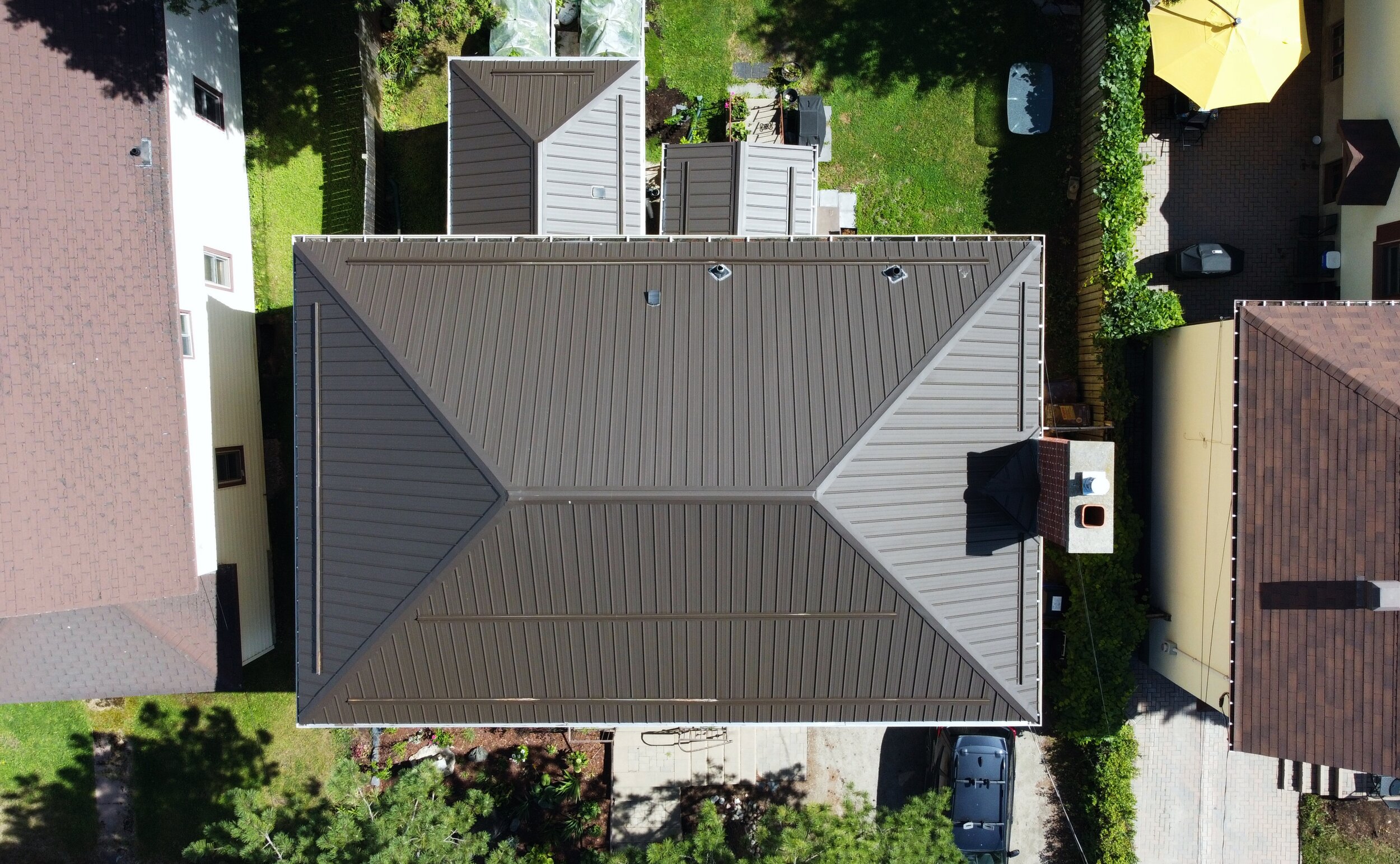

TOKE STREET

Residential Home – 300 Toke Street, Timmins, ON

• Material: 29 GA Flats – Optimum Rib

• Color: Sepia Brown

• Size: 1,600 sq. ft.

Project Overview

This home required more than just a new roof—it needed a structural improvement. The existing brick chimney had been deteriorating for some time and was no longer in use. Our skilled team safely removed it down to ceiling level, eliminating a potential hazard and allowing the homeowners to address insulation issues that were causing heat loss.

To ensure a high-quality and efficient roofing system, we:
✔ Removed the deteriorating brick chimney to improve structural integrity.
✔ Provided the homeowner with an opportunity to upgrade attic insulation, reducing heat loss.
✔ Installed a durable 29 GA Flats Optimum Rib metal roofing system designed for longevity and weather resistance.

KRAFT CREEK ROAD

Residential Home – 805 Kraft Creek Road, Timmins, ON

• Material: Standing Seam Metal Roofing

• Color: Gloss Black

• Size: 5,000 sq. ft.

Project Overview

This project was a unique and rewarding challenge for Trussler Metal Roofing. The homeowners expanded their living space by adding an addition and remodeling their home, requiring a seamless blend between new and existing roofing.

To achieve this, we:
✔ Installed a standing seam metal roofing system over the newly built addition.
✔ Re-roofed the existing structure over previously installed shingles to ensure a uniform appearance.
✔ Provided a durable, high-performance roof designed to withstand Northern Ontario’s extreme weather conditions.

Why Metal Roofing?
With a peak reaching approximately 50 feet high, this home is continuously exposed to strong winds and harsh natural elements. A standing seam metal roof was the perfect solution, offering exceptional durability, wind resistance, and long-term protection.

This project was completed in just two weeks, leaving the homeowners with a stunning, long-lasting roof built to perform in any season.

Another successful project, another satisfied homeowner!

REG POPE BLVD

Residential Home – 930 Reg Pope Blvd, Timmins, ON

• Material: METSTAR Tile

• Color: Charcoal

• Size: 3,025 sq. ft.

Project Overview

Trussler Metal Roofing was excited to take on this unique and rewarding challenge! The layout of this roof was octagon-shaped, which required meticulous attention to detail during both the preparation and installation stages. While the design made the project more complex, the final result was well worth the effort.

For this project, we:
✔ Installed METSTAR Tile roofing, offering both durability and aesthetic appeal.
✔ Ensured precise alignment and fitting of all components due to the unique octagonal shape of the roof.
✔ Provided a long-lasting solution that the homeowners can count on for decades to come.

Why Metal Roofing?
The homeowners wanted a roof they could trust for the long term, and with a 50-year manufacturer’s warranty and a 10-year workmanship warranty, they can be confident they will never need to worry about roof replacement again.

This project was completed in just one week, giving the homeowners peace of mind with a beautiful, high-quality roof.

Another successful project, another satisfied homeowner!

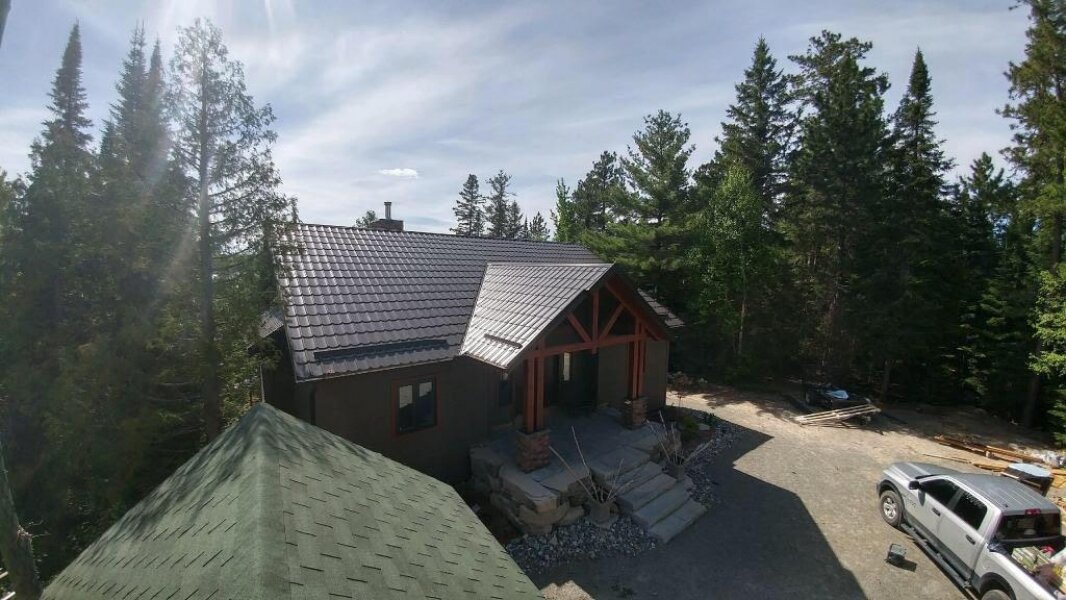

STAR LAKE

• Material: Steel Tile Katola Panels

• Color: Dark Brown

• Size: 3,500 sq. ft.

Project Overview

For this new build, we provided supply and installation services using Steel Tile Katola panels, a premium product made right here in Ontario. This system offers the durability and aesthetics of full-length panels while providing a unique, manageable installation process.

To ensure optimal performance and longevity, we:
✔ Installed a synthetic underlay on the roof deck, creating a barrier against condensation that can form underneath metal roofing.
✔ Used a panel system that doesn’t require strapping, allowing it to be installed directly onto the plywood roof deck.
✔ Ensured precise installation, as the panels must be carefully aligned to achieve the desired "tile look," which requires more accuracy than typical asphalt shingles.

Note on Steel Tile Katola Panels
While designed with DIY enthusiasts in mind, we emphasize that these panels require careful, precise layout to ensure the proper tile appearance. Additionally, cutting these panels should always be done with snips or electric shears—NEVER a saw or grinder, as the inner steel core can rust if improperly cut.

This project was completed in just 6 days, giving the homeowner a stylish, durable roof that’s built to last.

Another successful installation, another satisfied homeowner!

MILL HOUSE

PROJECT DESCRIPTION

Residential Home
Iroquois Falls, ON

Material : Optimum rib charcoal
Color Choice: BRIGHT RED
Sq. Footage: 3900

This 3900 square foot home has Optimum Rib Charcoal metal from Agway. This was a great opportunity to put a roof on one of the oldest homes in Iroquois Falls. The Optimum Rib is the most economical panel. When done with precision (all specific trim flashing and details) this standard panel can be a real eye-catcher.

The owner wanted to replace the roof. Shingles were in decent condition but the owner did not want to take a chance and wait until they were finished to avoid any problems.

Project duration: 8 days

HEART

Timmins, ON

PROJECT DESCRIPTION

Material : Straight rib 29 gauge
Color Choice: Black
Sq. Footage: 1500

This 1500 Square foot home has " black " straight rib 29 Gauge metal panels. This home had major ice damn build-up and subsequent leakage problems. The previous owner had built a roof on top of the original roof but did not fix the insulation and vapor barrier causing the blocks of ice between the two roofs now. These blocks of ice melt on mild winter days, run into the wall, and come out through windows and floors. How we approached this job: we removed the secondary roof to access the inner sealing and create a vapor barrier from wall to wall over the ceiling space. This was done using a closed-cell spray foam which will also be the insulation for the home. All of this work was performed on the outside of the house so that the tenants could be uninterrupted.

FYI: This job was challenging due to the extensive prior roof renovations and additions that were clearly not effective. If you are ever asked to put a double roof on your existing roof this is a REALLY bad idea. %90 of the time the roof structure on your home is not what is causing you the problems. Adding another layer ( roof system) is just a band-aid solution. Problems that will occur are moisture and heat leaving your home through the ceiling and it now has more places to collect, to condensate frost and ice. What you really want to tackle is stopping the heat and moisture that's inside the home from escaping through the ceiling ( inadequate vapor barrier and insulation). Before you just go and add more blown insulation you need to be sure that you have proper vapor barrier or the problem will continue. Many roof companies do not deal with vapor barriers which leaves the owners with many future problems. Insulation and vapor barrier go hand in hand. One is not effective without the other.

​Project duration: 6 days ​

PORCUPINE

PROJECT DESCRIPTION

Residential Home
PORCUPINE, Ontario

      Material:  Optimum rib
Color Choice: melchurs green
Sq. Footage: 2200

This 2200 Square foot home and garage has "melchurs green" Optimum Rib Gauge metal panels from Agway.

The owner replaced his shingle roof with metal. 20 years ago owner would of liked to do metal, however; the industry was not set up (not enough colors, no product availability, and no installers). Now that his shingles are finished and the industry has what he wants he was easily able to choose a color he wants, a warranty he likes, and a company that specializes in metal installations to install his new metal roof.

Project duration: 3 days

NELLIE LAKE

PROJECT DESCRIPTION

Residential Home
Nellie Lake, ON

      Material:  Optimum rib
Color Choice: chocolate brown
Sq. Footage: 2800

Owner wanted to ensure that upon selling his home there would be no issues with the roofing system. The shingles were in good condition. Shingles for this job were removed no rot was found. A synthetic underlay was installed on the roof decking. A strapping system was installed on the underlay to allow airflow and provide proper fastening sub-straight for metal panels. The chimney was flashed with an EPDM rubber flashing specific to metal roof systems. This chimney was close to the peak and did not require an extra snow stop system above it. In other cases when a chimney is close to the eave we would install bracing specific to metal roofs and a snow stop system adequate to protect the chimney and the braces from snow pressure.

FYI: Metal roofing is reflective of the sun’s energy, this particular panel has a reflective paint system on it which reflects the sun’s energy away from the house. In the U.S. these panels are recognized as energy efficient and hold an Energy Star rating. Reflective metal roofing can save your home up to 40% in summer cooling energy costs. Hopefully, Canada will catch up to this and homeowners will be able to benefit from a rebate for installing an energy smart metal roof.

Project duration: 3 days

MELROSE BLVD

PROJECT DESCRIPTION

Residential Home
646 Melrose Blvd
TIMMINS, ONTARIO

Material : Katola Panels
Color Choice: BRIGHT RED
Sq. Footage: 2900

_________________

The customer who chose this roof requested a material that would be unique but match the stucco previously applied to their home. The bright red color offers this home a very distinct feature in the neighborhood all while matching the character of the property and  home perfectly.

This project did not require installation of strapping to the old roof in order to apply a metal roof. The customer had a solid substrate that could accommodate the new material properly, therefore, the roofing system was applied directly over the old roof.

This project in particular took 1 week to complete.
